Drilling Tools l Drilling Accessories l Strap Duplicator
 |

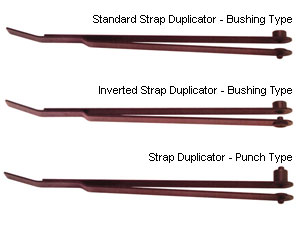

These strap duplicators are used to drill holes in overlapping skins. The hole to be duplicated is drilled through the bushing when the pilot is in place. The inverted tool is used when you need to duplicate a hole where sheets cannot be pried apart. Tapered back end of handles are convenient for prying sheets apart. |
Standard |
Inverted |
Punch Type |
||||||
Part Number |
Pilot Drill Size |
Length |
Part Number |
Pilot Drill Size |
Length |
Part Number |
Pilot Drill Size |
Length |
MM250-1 |
#40 |
6-1/4” |
MM255-1 |
#40 |
6-1/4” |
MM260-1 |
#40 |
6-1/4” |
MM250-2 |
#30 |
MM255-2 |
#30 |
MM260-2 |
#30 |
|||
MM250-3 |
#21 |
MM255-3 |
#21 |
MM260-3 |
#21 |
|||
MM250-4 |
#19 |
MM255-4 |
#19 |
MM260-4 |
#19 |
|||
MM250-5 |
#10 |
MM255-5 |
#10 |
MM260-5 |
#10 |
|||
MM250-6 |
#5 |
MM255-6 |
#5 |
MM260-6 |
#5 |
|||
MM250-7 |
“F” |
MM255-7 |
“F” |
MM260-7 |
“F” |
|||
MM250-8 |
1/4” |
MM255-8 |
1/4” |
MM260-8 |
1/4” |
|||
MM250-11 |
#40 |
13-1/4” |
MM255-11 |
#40 |
13-1/4” |
MM260-11 |
#40 |
13-1/4” |
MM250-12 |
#30 |
MM255-12 |
#30 |
MM260-12 |
#30 |
|||
MM250-13 |
#21 |
MM255-13 |
#21 |
MM260-13 |
#21 |
|||
MM250-14 |
#19 |
MM255-14 |
#19 |
MM260-14 |
#19 |
|||
MM250-15 |
#10 |
MM255-15 |
#10 |
MM260-15 |
#10 |
|||
MM250-16 |
#5 |
MM255-16 |
#5 |
MM260-16 |
#5 |
|||
MM250-17 |
“F” |
MM255-17 |
“F” |
MM260-17 |
“F” |
|||
MM250-18 |
1/4” |
MM255-18 |
1/4” |
MM260-18 |
1/4” |
|||
